Standard Mold Sample Sales

At the initial stage of nanoimprinting, the cost of expensive molds is a bottleneck, and there are many cases where projects are abandoned. We offer low-cost custom molds that meet the customer’s specifications in order to speed up the initial evaluation.



Also, we can provide large pattern molds (4″ to 12″) which are inquired by many customers. In addition to the off-the-shelf products listed below, we also offer custom production services.



Please feel free to contact us for details.

Silicon Mold

We can handle a wide range of patterning needs, from ultra-fine patterning using the most advanced semiconductor technology to micron-order patterns such as Micro Lens Arrays made by machining.

High Aspect Ratio Pillar Mold (MLP230/500)
Available Size: φ4″~φ12″

Mold for High Luminance (MLP230/MLH230)
Available Size: φ4″~φ12″

Mold for High Luminance (MLP230/MLH230)
Cross section

List of Standard Mold

L & S

Commodity CodeDimension of Structure (Spec)Effective Area Stamp DimensionMaterialArray
MALS250/500/500-30×30 Width:250nm, Height:500nm, Pitch:500nm□30mm□40mmSilicon(Si)
NALS250/500/500-30X30Width:250nm, Height:500nm, Pitch:500nm □30mm□40mmNickel(Ni)
MTLS1/1/2-50×50Width:1μm, Height:1μm, Pitch:2μm□50mm□50mmSilicon(Si)
MTLS1/2/2-50×50Width:1μm, Height:2μm, Pitch:2μm□50mm□50mmSilicon(Si)
MALS5/1/10-30×30Width:5μm, Height:1μm, Pitch:10μm□30mm□40mmSilicon(Si)
NALS5/1/10-30×30Width:5μm, Height:1μm, Pitch:10μm□30mm□40mmNickel(Ni)
NALS500/250/1000-20×20Width:500nm, Height:250nm, Pitch:1000nm □20mm□30mmNickel(Ni)

Hole

Commodity CodeDimension of Structure Effective AreaStamp Dimension MaterialArray
MAH100/100/400-30X30φ100nm, Depth:100nm, Pitch:400nm□30mm□40mmSilicon(Si)Square
MAH250/500/500-30×30φ250nm, Depth:500nm, Pitch:500nm□30mm□40mmSilicon(Si)Hexagonal
MLH230/200/460-φ120φ230nm, Depth:200nm, Pitch:460nmφ120mmφ120mmSilicon(Si)Hexagonal
MAH300/300/600-30X30φ300nm, Depth:300nm, Pitch:600nm □20mm□25mmSilicon(Si)Hexagonal
MAH300/600/600-30X30φ300nm, Depth:600nm, Pitch:600nm□20mm□25mmSilicon(Si)Hexagonal
MAH300/600/800-30X30φ300nm, Depth:600nm, Pitch:800nm □20mm□25mmSilicon(Si)Square
MTH500/500/1000φ500nm, Depth:500nm, Pitch:1000nm□50mm□50mmSilicon(Si)Hexagonal
NAH2000/500/5000-30X30 φ2000nm, Depth:500nm, Pitch:5000nm □30mm□40mmNickel(Ni)Square
MTH1.9/2.3/3-50×50φ1.9μm, Depth2.3μm, Pitch3.0μm□50mm□50mmSilicon(Si)Hexagonal

Pillar

Commodity Code Dimension of Structure Effective Area Stamp Dimension MaterialArray
NAP100/100/400-30X30φ100nm, Height:100nm, Pitch:400nm□30mm□40mmNickel(Ni)Square
MLP230/500/460-φ120φ230nm, Height:500nm, Pitch:460nmφ120mmφ120mmSilicon(Si)Hexagonal
NAP230/100/460-30X30φ230nm, Height:100nm, Pitch:460nm□30mm□40mmNickel(Ni)Hexagonal
NAP230/200/340-30X30φ230nmnm, Height:200nm, Pitch:340nm □30mm□40mmNickel(Ni)Hexagonal
NAP230/200/460-30X30φ230nm, Height:200nm, Pitch:460nm□30mm□40mmNickel(Ni)Square
MLP230/200/460-φ120φ230nm, Height:200nm, Pitch:460nm φ120mmφ120mmSilicon(Si)Hexagonal
NAP230/200/690-30X30φ230nmnm, Height:200nm, Pitch:690nm □30mm□40mmNickel(Ni)Hexagonal
NAP230/200/690-30X30φ230nmnm, Height:200nm, Pitch:690nm□30mm□40mmNickel(Ni)Square
NAP250/500/500-30×30φ250nm, Height:500nm, Pitch:500nm□30mm□40mmNickel(Ni)Hexagonal
NAP250/250/1000-20×20φ250nm, Height:250nm, Pitch:1000nm□20mm□30mmNickel(Ni)Square
NAP270/200/530-30X30φ270nm, Height:200nm, Pitch:530nm□30mm□40mmNickel(Ni)Hexagonal
NAP300/300/600-20×20φ300nm, Height:300nm, Pitch:600nm□20mm□25mmNickel(Ni)Hexagonal
NAP300/600/600-30X30φ300nm, Height:600nm, Pitch:600nm□20mm□25mmNickel(Ni)Hexagonal
NAP300/600/800-30X30 φ300nm, Height:600nm, Pitch:800nm□20mm□25mmNickel(Ni)Square
NAP310/200/620-30X30 φ310nm, Height:200nm, Pitch:620nm □30mm□40mmNickel(Ni)Hexagonal
NAP400/200/600-30X30φ400nm, Height:200nm, Pitch:600nm□30mm□40mmNickel(Ni)Hexagonal
NAP400/200/600-30X30φ400nm, Height:200nm, Pitch:600nm□30mm□40mmNickel(Ni)Square
NAP400/400/600-30X30 φ400nm, Height:400nm, Pitch:600nm□30mm□40mmNickel(Ni)Square
NAP500/250/1000-20×20φ500nm, Height:250nm, Pitch:1000nm□20mm□30mmNickel(Ni)Square
NAP600/400/800-30X30φ600nm, Height:400nm, Pitch:800nm□30mm□40mmNickel(Ni)Hexagonal
NAP600/400/800-30X30 φ600nm, Height:400nm, Pitch:800nm□30mm□40mmNickel(Ni)Square
NAP2000/500/5000-30X30φ2000nm, Height:500nm, Pitch:5000nm□30mm□40mmNickel(Ni)Square

Plural

Commodity CodeDimension of Structure Effective AreaStamp Dimension MaterialArray
NA250/250/500-20×20
(PILLAR、LS)
φ250nm, Height:250nm, Pitch:500nm
Width:250 nm, Height:250nm, Pitch:500nm
□20mm□30mmNickel(Ni) Square

Custom Molded Examples

We can provide various custom molds for evaluation and mass production according to the customer’s request. Our company manufactures molds using seven different processing processes according to the pattern size.

Compound Custom Mold

It is possible to form more than one pattern on one mold according to your request.

Mold Material: Ni
Pattern: Pillar (picture in the right), L&S (picture in the left)
L&S: Width 250nm, Height 250nm, Pitch 500nm
Pillar: φ250nm, Height 250nm, Pitch 500nm

Low Cost NIL Mold

We can fabricate a mold according to your specification (Material: Si, Ni).

​​Pattern: L&S, Pillar, Hole, etc.
Pattern Size: 150nm~
Pattern Area: □10mm~□30mm
Material: Si, Ni

複合カスタムモールド
Line & Space
Hole Pattern and Pillar Pattern

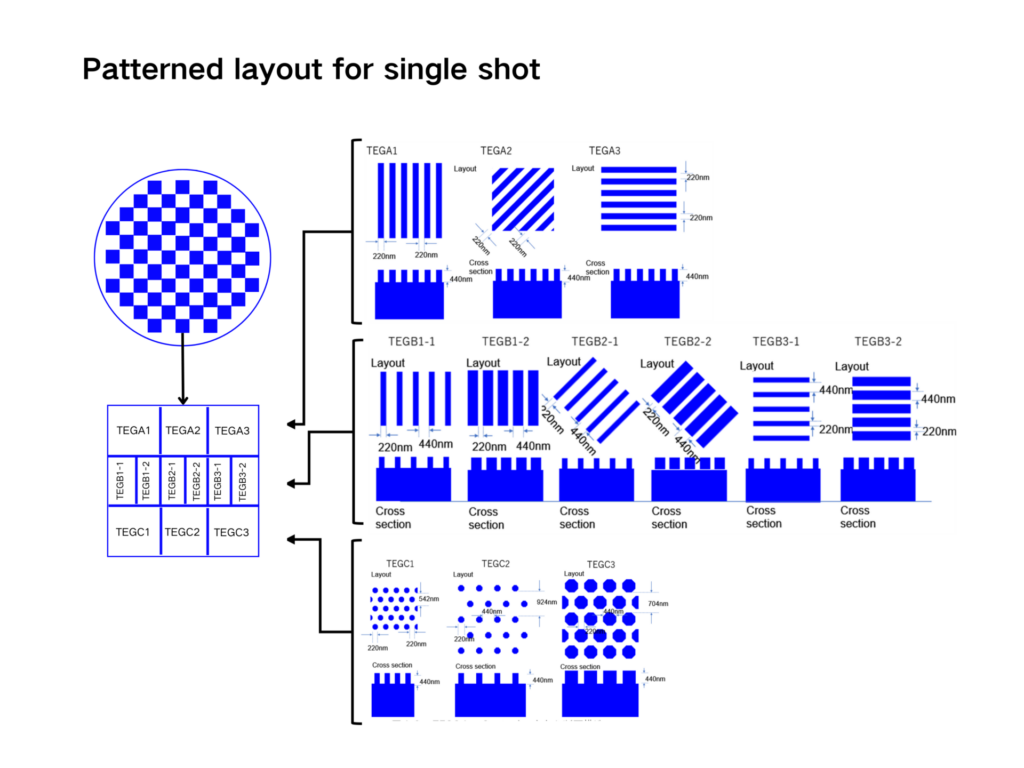

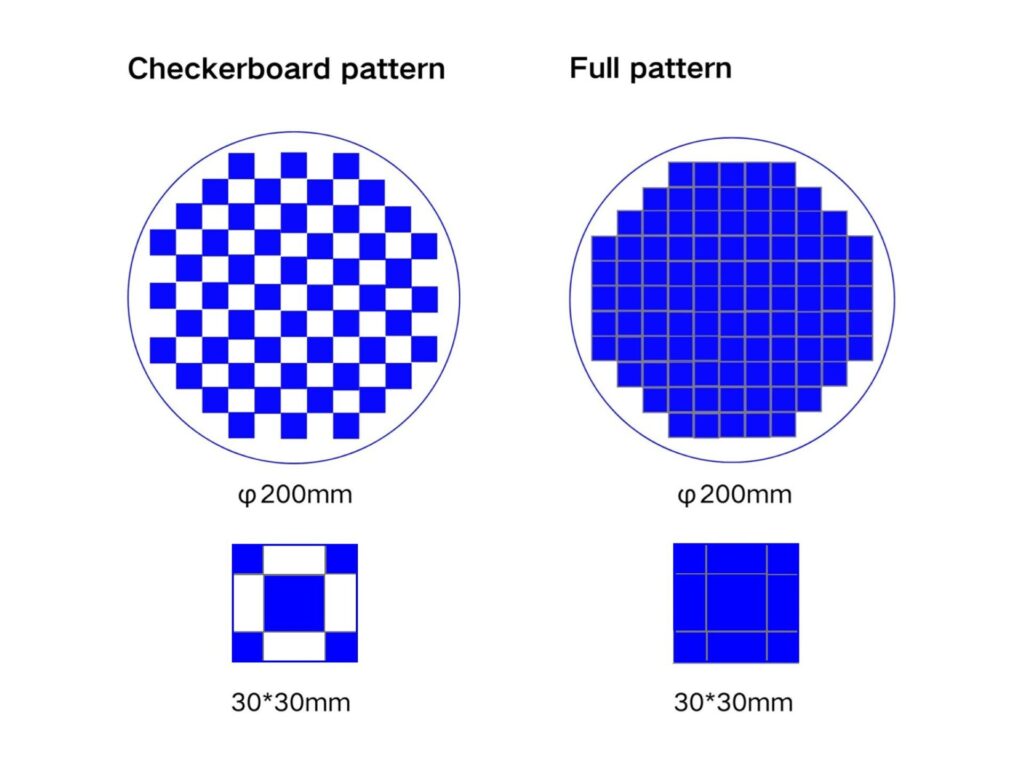

Large-Area Custom Mold

We offer Ni electroforming mold duplication services.

Ni電鋳モールド (200nmピラー、高さ500nm)

Ni Electroformed Mold
(200nm Pillar, Height 500nm)

8″ Ni Electroformed Mold
(Replica Mold from φ200nm Pillar)

Ni electroformed replica mold can be fabricated from silicon mold.

Silicon mold (200nm Pillar, Height 500nm)
Silicon mold (Honeycomb, One side: 1μm, Wall-thickness 240nm)
シリコンモールド(ハニカム 一辺1μm、壁厚240nm)
